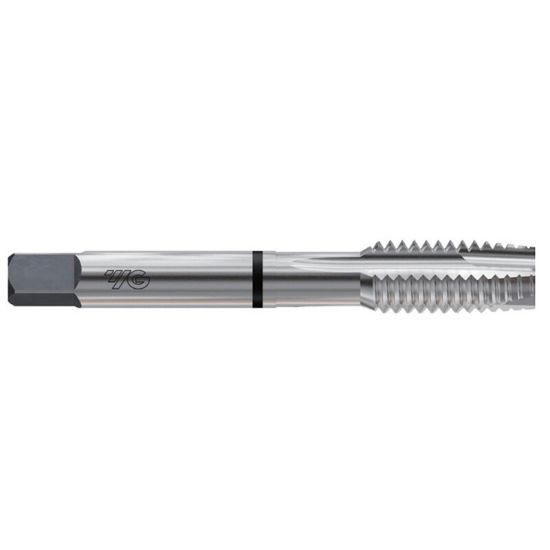

YG-1 T4323 No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T4323
Delivery date: 3-5 days
$8.80

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Square 0.1520
Tap Type Plug
Thread Pitch 24.00TPI
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Length Type Standard
Tool Material Steel
Thread Size No.10
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
