  • YG-1 T2K01525 M12-1.25MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

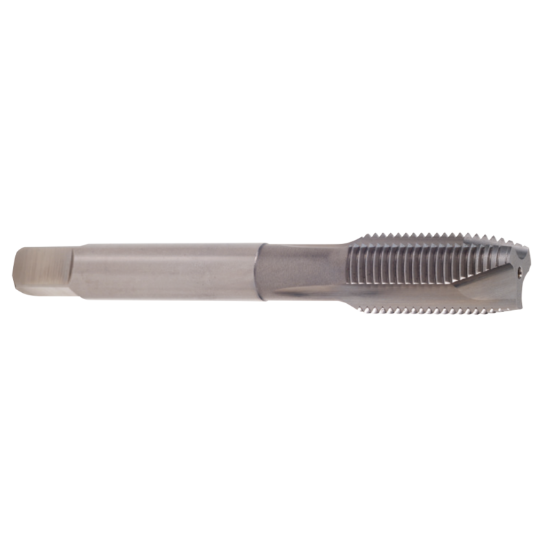

Picture of YG-1 T2K01525 M12-1.25MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2K01525 M12-1.25MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2K01525
Delivery date: 3-5 days
$24.31

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Length Type Standard
Thread Pitch 1.25MM
Flutes/Inserts 3
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Size M12
Dimension Standard ANSI/ANSI
Overall Len 3.3800 85.85MM
Cut Rating Aluminum, Brass, Graphite, Plastic
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
