  • YG-1 T2K01515 M12-1.50MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

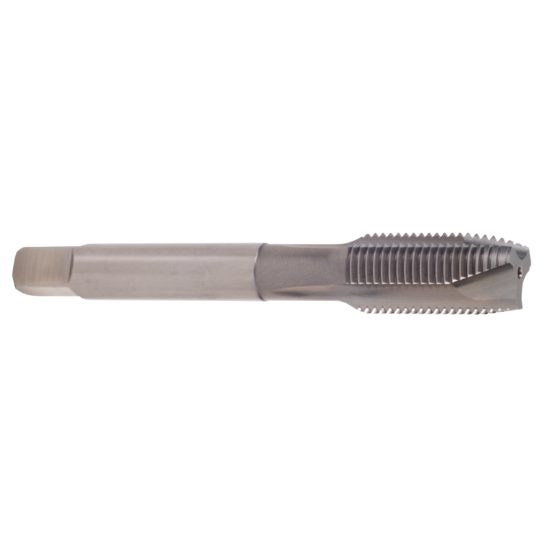

Picture of YG-1 T2K01515 M12-1.50MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2K01515 M12-1.50MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2K01515
Delivery date: 3-5 days
$24.31

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Thread Size M12
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Length Type Standard
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Thread Limit D5
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Cut Rating Aluminum, Brass, Graphite, Plastic
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Thread Pitch 1.50MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
