  • YG-1 T2K01506 M12-1.75MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

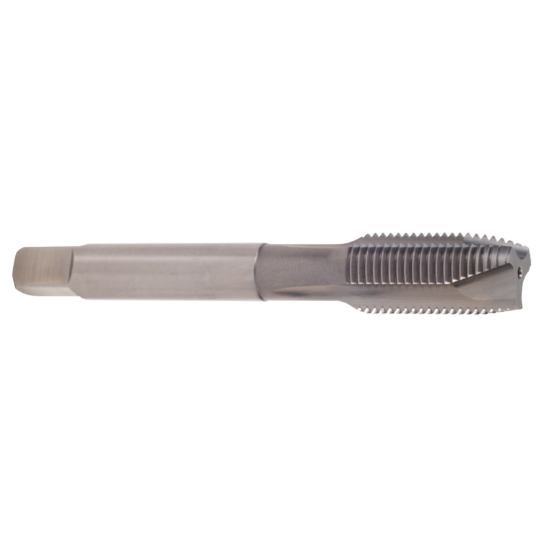

Picture of YG-1 T2K01506 M12-1.75MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2K01506 M12-1.75MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2K01506
Delivery date: 3-5 days
$24.31

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Size M12
Overall Len 3.3800 85.85MM
Flutes/Inserts 3
Cut Rating Aluminum, Brass, Graphite, Plastic
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Dimension Standard ANSI/ANSI
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Tool Material Steel
Length Type Standard
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Automotive Yes
