  • YG-1 T2K01426 M10-1.50MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

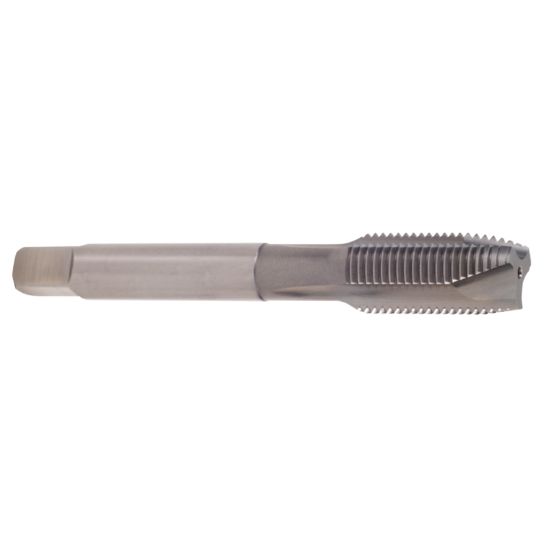

Picture of YG-1 T2K01426 M10-1.50MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2K01426 M10-1.50MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2K01426
Delivery date: 3-5 days
$9.69

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 1.50MM
Tool Material Steel
Thread Size M10
Dimension Standard ANSI/ANSI
Cut Rating Aluminum, Brass, Graphite, Plastic
Tap Square 0.2860
Thread Type Metric
Thread Limit D6
Tap Type Plug
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
