  • YG-1 T2K01315 M6-1.00MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

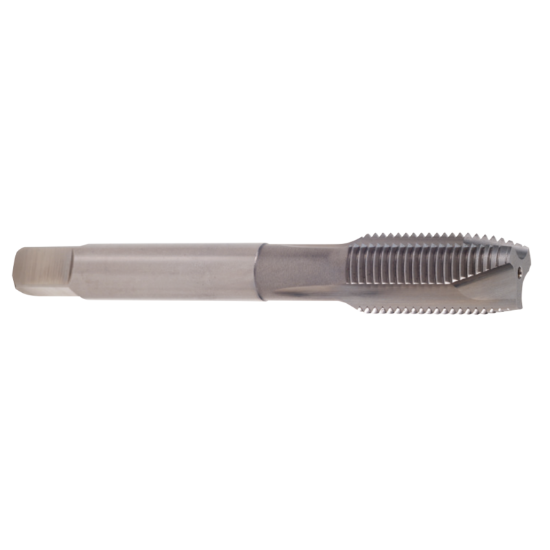

Picture of YG-1 T2K01315 M6-1.00MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2K01315 M6-1.00MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2K01315
Delivery date: 3-5 days
$7.07

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Flutes/Inserts 2
Thread Type Metric
Tap Type Plug
Thread Size M6
Length Type Standard
Tool Material Steel
Cut Rating Aluminum, Brass, Graphite, Plastic
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
