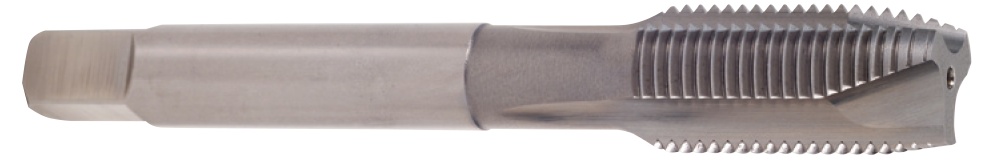

Picture of YG-1 T2K01315 M6-1.00mm Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 T2K01315 M6-1.00mm Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated

Part Number: YG-T2K01315
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$10.01
SKU: 1164571

Description

YG-1 T2K01315 M6x1.00MM Cut Spiral Point Plug 4.0P-5.0P HSSE-V3 Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 2
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V3
Standards & Identification
Dimension Standard ANSI/ANSI
