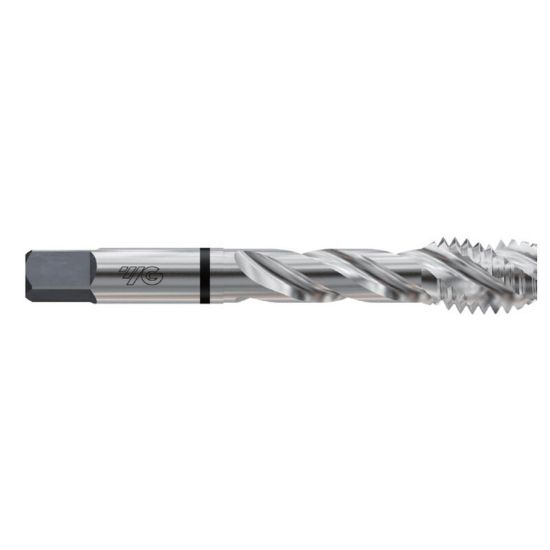

YG-1 T2543 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2543
Delivery date: 3-5 days
$19.15

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Overall Len 3.1560 80.16MM
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Thread Size 7/16"
Thread Pitch 20.00TPI
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
