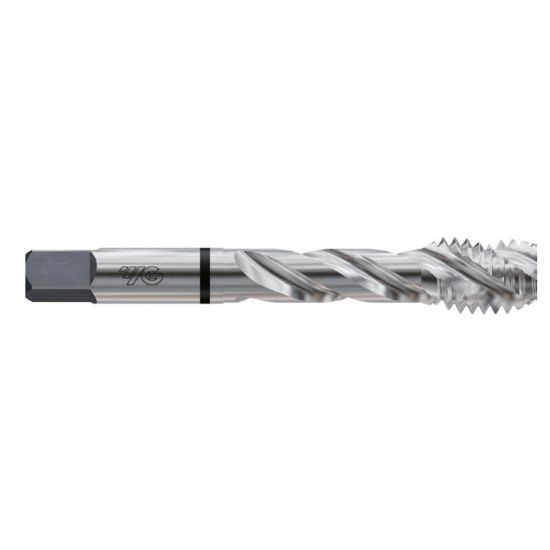

YG-1 T2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T2343
Delivery date: 3-5 days
$10.08

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H3/GH3
Shank/Pilot Dia 0.1940 4.93MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
