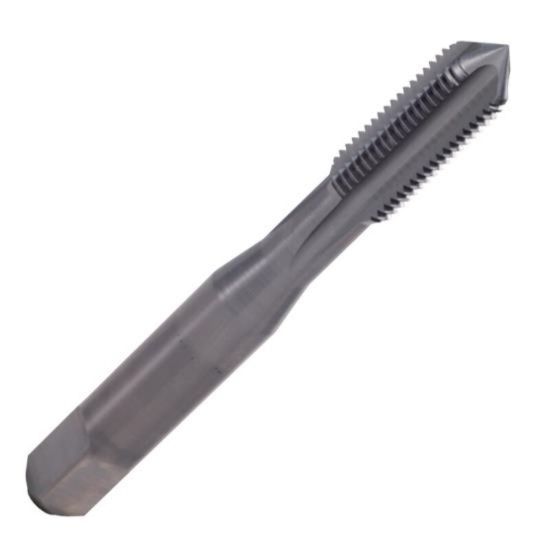

YG-1 T0C01482 3/8-16.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T0C01482
Delivery date: 3-5 days
$172.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 16.00TPI
Thread Limit 2B
Tap Chamfer 2.5P-3.0P
Thread Size 3/8"
Thread Type NC/UNC
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tool Material Steel
Overall Len 2.9370 74.60MM
Tap Square 0.2860
Tap Style Cut Straight Flute
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
