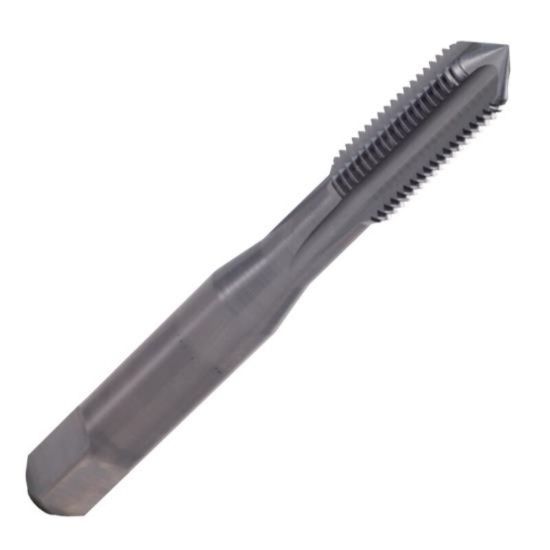

YG-1 T0C01422 1/4-28.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T0C01422
Delivery date: 3-5 days
$96.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size 1/4"
Thread Limit 2B
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Straight Flute
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Flutes/Inserts 4
Thread Pitch 28.00TPI
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
