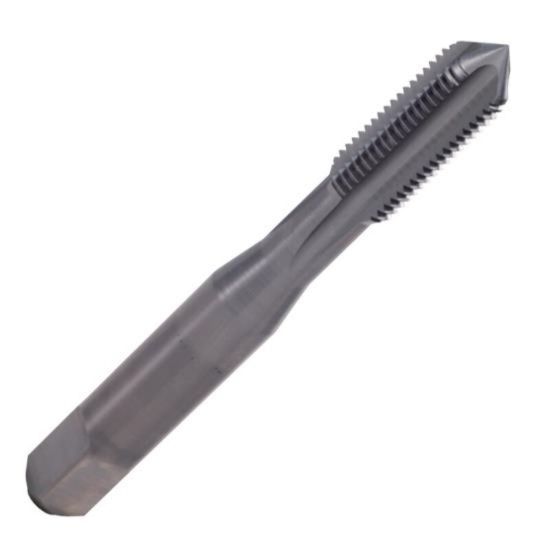

YG-1 T0C01402 1/4-20.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T0C01402
Delivery date: 3-5 days
$96.79

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Tap Square 0.1910
Tap Style Cut Straight Flute
Thread Limit 2B
Shank/Pilot Dia 0.2550 6.48MM
Tool Material Steel
Thread Size 1/4"
Tap Chamfer 2.5P-3.0P
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
