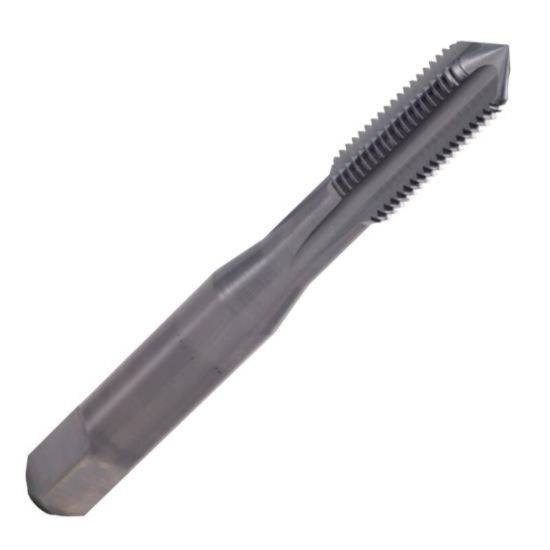

YG-1 T0C01342 No.10-32.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T0C01342
Delivery date: 3-5 days
$92.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tool Material Steel
Thread Limit 2B
Tap Square 0.1520
Thread Size No.10
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Flute Direction R - Right
Length Type Standard
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Overall Len 2.3750 60.33MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
