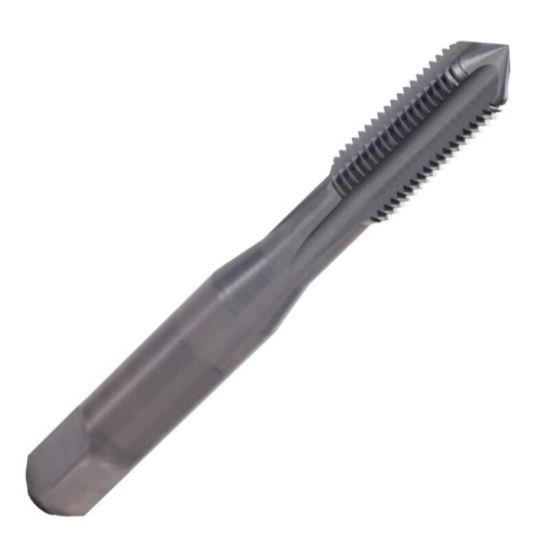

YG-1 T0C01322 No.10-24.00TPI Cut Straight Flute Mod Bottom 2.5P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T0C01322
Delivery date: 3-5 days
$92.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Pitch 24.00TPI
Cut Rating Aluminum, Brass, Ductile Iron, Gray Iron, Graphite, Plastic
Overall Len 2.3750 60.33MM
Thread Limit 2B
Tap Square 0.1520
Tool Material Steel
Thread Size No.10
Tap Style Cut Straight Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
