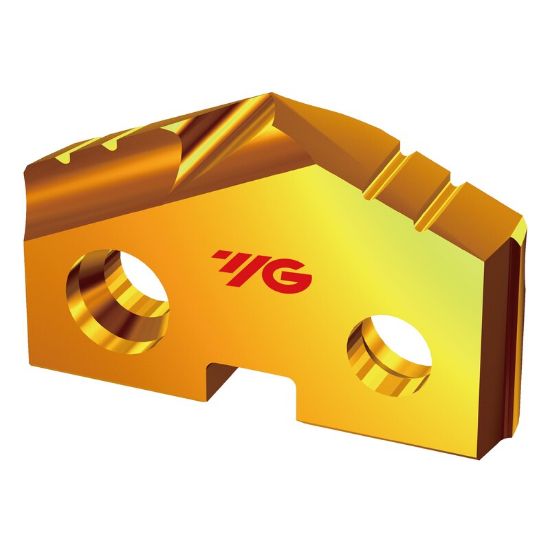

YG-1 SV820114 1-7/32 Carbide (C5) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV820114
Delivery date: 3-5 days
$59.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Spade Drilling, Single Insert Drilling, Drilling
Shipping State Illinois
Coating Hardslick
Made In USA No
Dimensional Specifications
Cutter Dia 1.2188 30.96MM - 1-7/32
Flutes/Inserts 2
Included Angle 132°
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 1.2188 30.96MM - 1-7/32
Tool Material Carbide C5
Cutting & Machining Properties
Cutting Edge Mat Carbide C5
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
