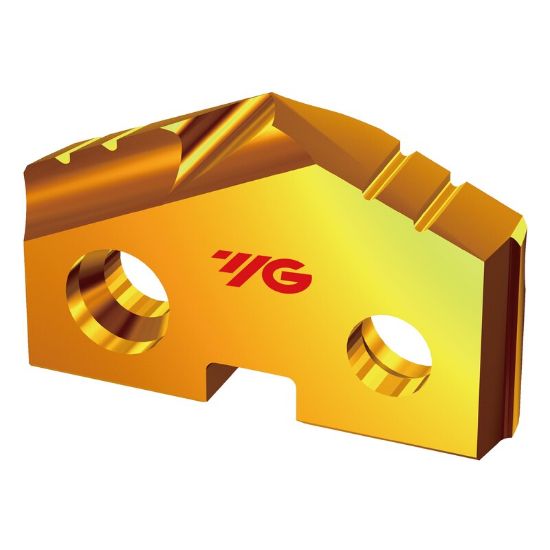

YG-1 SV820104 1-1/16 Carbide (C5) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV820104
Delivery date: 3-5 days
$59.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating Hardslick
Application Single Insert Drilling, Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Included Angle 132°
Cutter Dia 1.0625 26.99MM - 1-1/16
Cut Dia Min 1.0625 26.99MM - 1-1/16
Tool Material Carbide C5
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide C5
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
