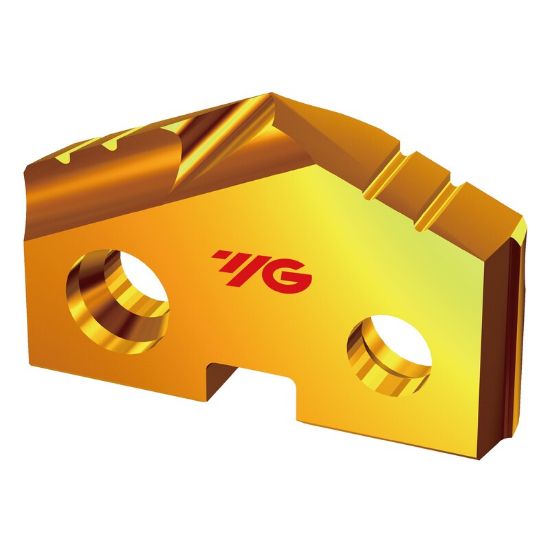

YG-1 SV820049 49/64 Carbide (C5) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV820049
Delivery date: 3-5 days
$50.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Application Drilling, Spade Drilling, Single Insert Drilling
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7656 19.45MM - 49/64
Flutes/Inserts 2
Included Angle 132°
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide C5
Cutter Dia 0.7656 19.45MM - 49/64
Cutting & Machining Properties
Cutting Edge Mat Carbide C5
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
