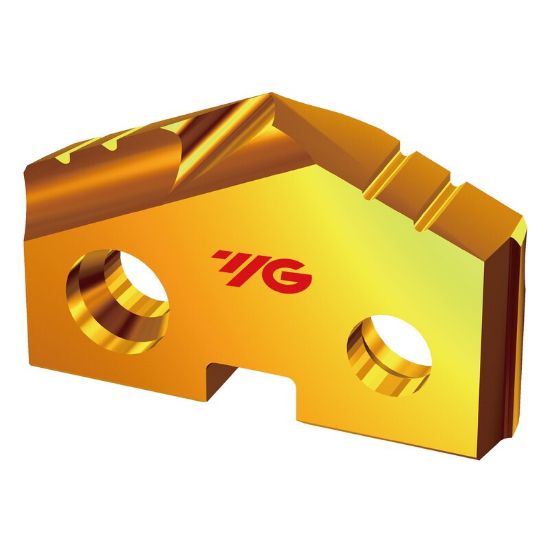

YG-1 SV570102 10.20MM Premium Cobalt (M48) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV570102
Delivery date: 3-5 days
$34.48

Cutting Edge Definition

PM M48 high-speed tool steel is a flexible steel that provides a unique combination of high wear-resistance with high impact toughness and bend strength, which are results of the fine grain size, small carbides and superior cleanliness of the steel. PM M48 offers improved cutting tool life compared to conventionally-wrought M1, M2, M7 and other lower-alloyed high-speed steels. It excels in cold work tooling applications, outlasting high-carbon, high-chromium die steels such as D2 and D3.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Application Single Insert Drilling, Spade Drilling, Drilling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Tool Material Premium Cobalt M48
Flutes/Inserts 2
Included Angle 132°
Cutter Dia 0.4016 10.20MM
Cut Dia Min 0.4016 10.20MM
Cutting & Machining Properties
Cutting Edge Mat Premium Cobalt M48
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
