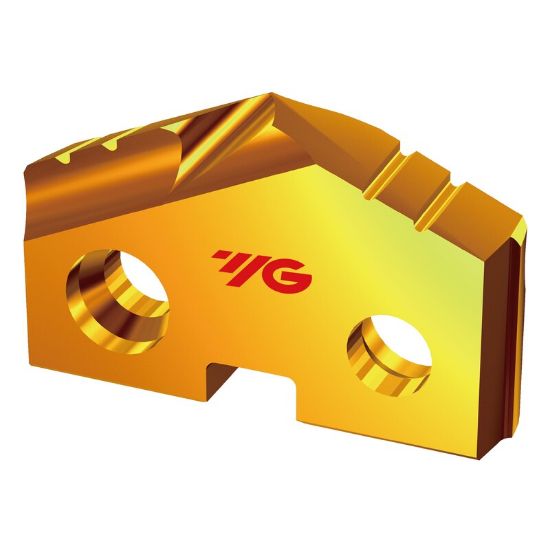

YG-1 SV525146 1-23/32 Premium Cobalt (M48) SV-Point Throw Away Spade Drill Insert H-Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV525146
Delivery date: 3-5 days
$61.57

Cutting Edge Definition

PM M48 high-speed tool steel is a flexible steel that provides a unique combination of high wear-resistance with high impact toughness and bend strength, which are results of the fine grain size, small carbides and superior cleanliness of the steel. PM M48 offers improved cutting tool life compared to conventionally-wrought M1, M2, M7 and other lower-alloyed high-speed steels. It excels in cold work tooling applications, outlasting high-carbon, high-chromium die steels such as D2 and D3.

Grade and Coating Description

New coating great on HSS and cobalt tools to improve lubricity and abrasion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Coating H-Coated
Package Size 1
Dimensional Specifications
Tool Material Premium Cobalt M48
Cut Dia Min 1.7188 43.66MM - 1-23/32
Cutter Dia 1.7188 43.66MM - 1-23/32
Flutes/Inserts 2
Included Angle 132°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat Premium Cobalt M48
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
