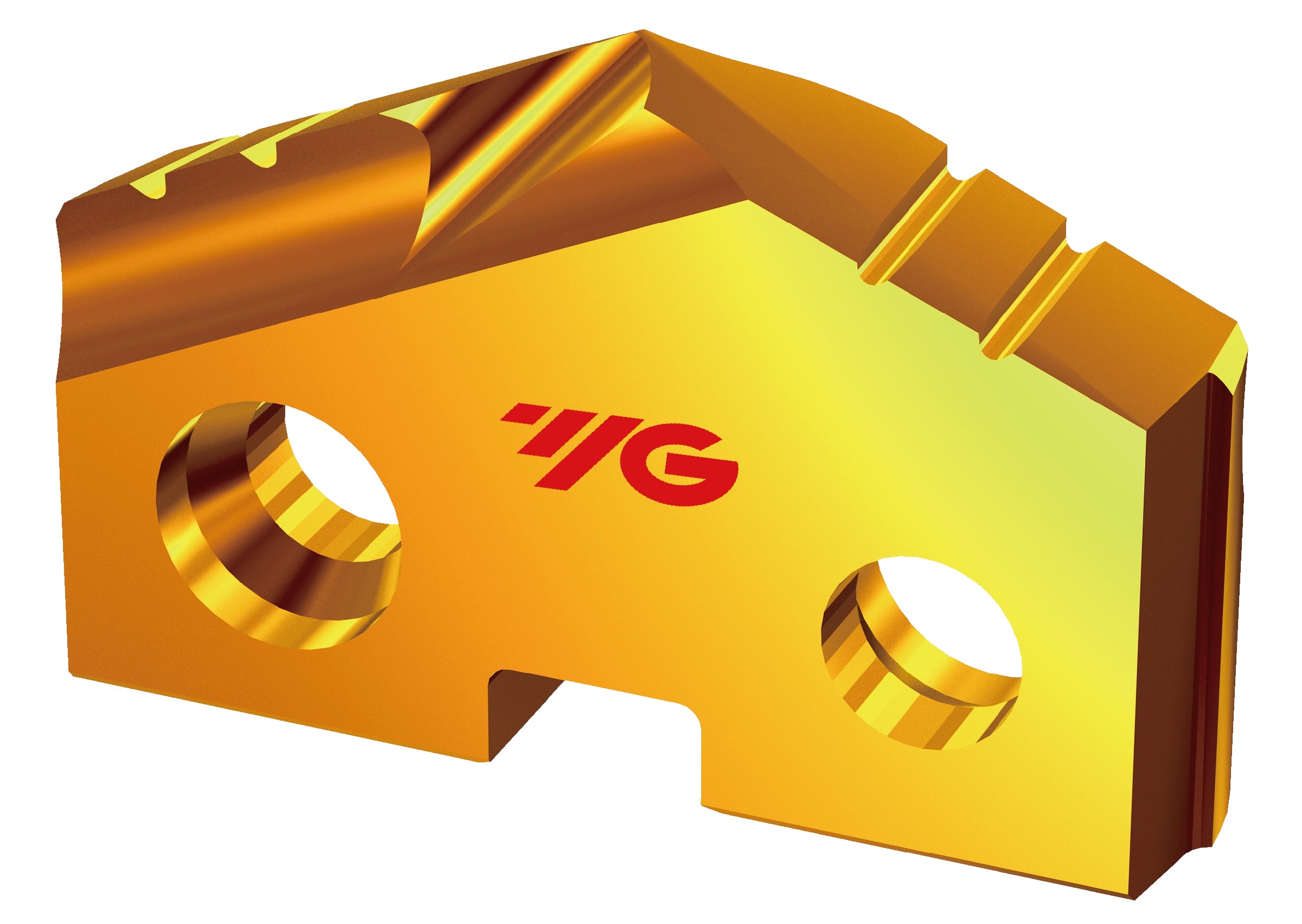

Picture of YG-1 SV525027 27/64 Premium Cobalt(M48) SV-Point Throw-Away Drill Insert H-Coated

YG-1 SV525027 27/64 Premium Cobalt(M48) SV-Point Throw-Away Drill Insert H-Coated

Part Number: YG1SV525027
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1152168
Vendor: Sussex Tool and Supply
$50.37

Description

YG-1 SV525027 Spade Dril 27/64 PREMIUM COBALT(M48) SV-POINT THROW-AWAY DRILL Insert H-COATED Premium Cobalt M48 New coating great on HSS and cobalt tools to improve lubricity and abrasion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Spade Insert
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Flutes/Inserts 2
Tool Dia 0.4219 10.72MM - 27/64
Geometry & Angles
Included Angle 132°
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Cut Dia Min 0.4219 10.72MM - 27/64
Materials & Finish
Tool Material Premium Cobalt M48
Cutting Edge Mat Premium Cobalt M48
Coating H-Coated
