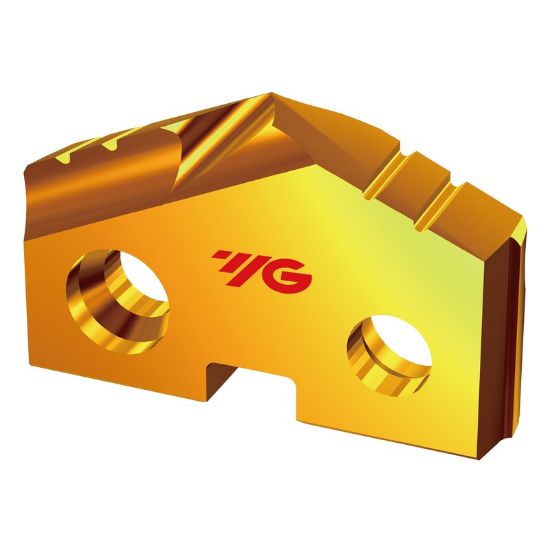

YG-1 SV170115 11.50MM Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV170115
Delivery date: 3-5 days
$31.28

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Coating Hardslick
Application Drilling, Single Insert Drilling, Spade Drilling
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Tool Material Super HSS T15
Cutter Dia 0.4528 11.50MM
Flutes/Inserts 2
Included Angle 132°
Cut Dia Min 0.4528 11.50MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Super HSS T15
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
