  • YG-1 SV125218 2-9/32 Super HSS(T15) SV-Point Throw Away Spade Drill Insert H-Coated

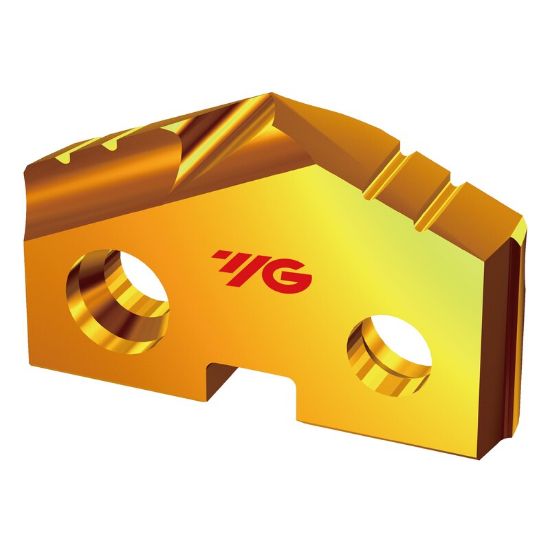

Picture of YG-1 SV125218 2-9/32 Super HSS(T15) SV-Point Throw Away Spade Drill Insert H-Coated

YG-1 SV125218 2-9/32 Super HSS(T15) SV-Point Throw Away Spade Drill Insert H-Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV125218
Delivery date: 3-5 days
$71.35

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

New coating great on HSS and cobalt tools to improve lubricity and abrasion resistance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling, Spade Drilling
Coating H-Coated
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 2.2810 57.94MM - 2-9/32
Tool Material Super HSS T15
Cutter Dia 2.2810 57.94MM - 2-9/32
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Included Angle 132°
Cutting & Machining Properties
Cutting Edge Mat Super HSS T15
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
