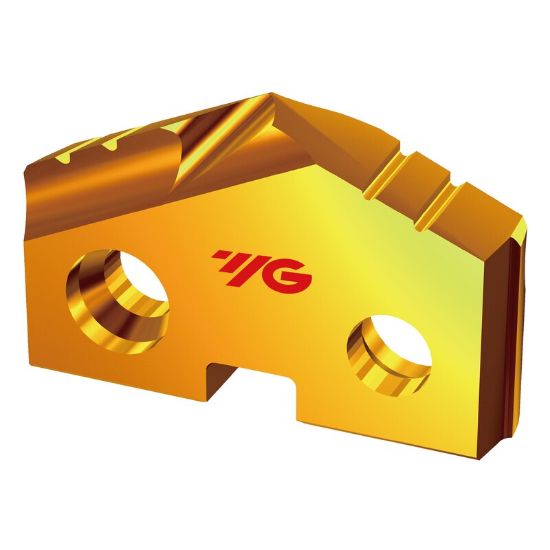

YG-1 SV120256 2-7/8 Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV120256
Delivery date: 3-5 days
$109.75

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling, Spade Drilling
Coating Hardslick
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 2.8750 73.03MM - 2-7/8
Tool Material Super HSS T15
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 2.8750 73.03MM - 2-7/8
Flutes/Inserts 2
Included Angle 144°
Cutting & Machining Properties
Cutting Edge Mat Super HSS T15
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
