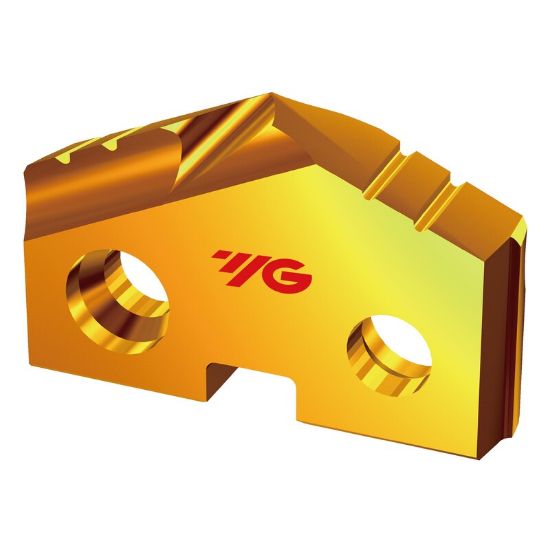

YG-1 SV120132 1-1/2 Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV120132
Delivery date: 3-5 days
$56.67

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Coating Hardslick
Package Size 1
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Included Angle 132°
Cutter Dia 1.5000 38.10MM - 1-1/2
Tool Material Super HSS T15
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS T15
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
