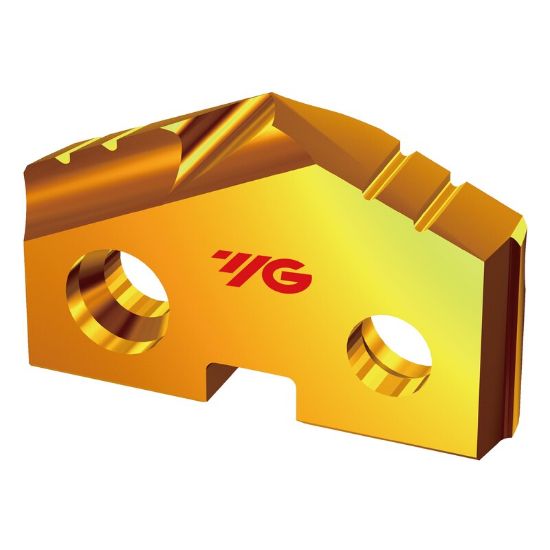

YG-1 SV120054 27/32 Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV120054
Delivery date: 3-5 days
$37.60

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Spade Drilling, Drilling
Shipping State Illinois
Package Size 2
Coating Hardslick
Dimensional Specifications
Cutter Dia 0.8438 21.43MM - 27/32
Flutes/Inserts 2
Included Angle 132°
Tool Material Super HSS T15
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.8438 21.43MM - 27/32
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS T15
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
