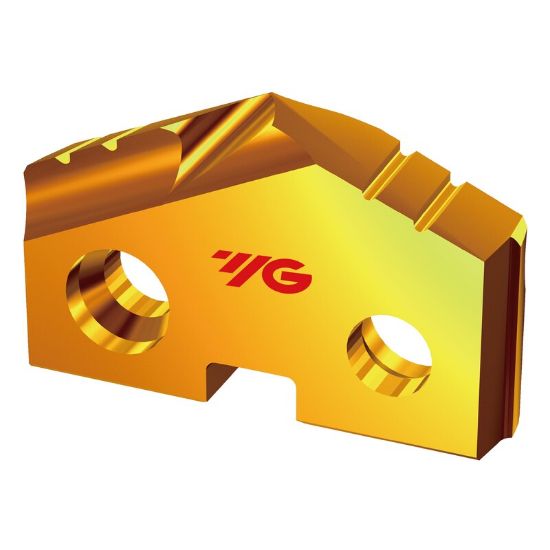

YG-1 SV120043 43/64 Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV120043
Delivery date: 3-5 days
$33.72

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Spade Drilling, Single Insert Drilling, Drilling
Shipping State Illinois
Package Size 2
Coating Hardslick
Made In USA No
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.6719 17.07MM - 43/64
Flutes/Inserts 2
Included Angle 132°
Cutter Dia 0.6719 17.06MM - 43/64
Tool Material Super HSS T15
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS T15
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
