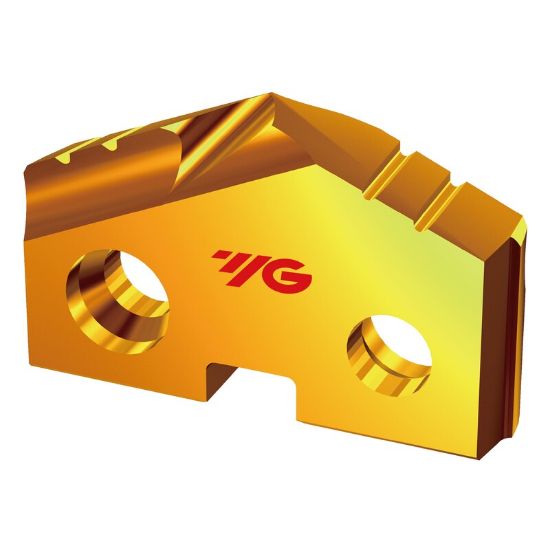

YG-1 SV120032 1/2 Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV120032
Delivery date: 3-5 days
$31.28

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating Hardslick
Application Spade Drilling, Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Super HSS T15
Flutes/Inserts 2
Included Angle 132°
Cut Dia Min 0.5000 12.70MM - 1/2
Cutter Dia 0.5000 12.70MM - 1/2
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Super HSS T15
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
