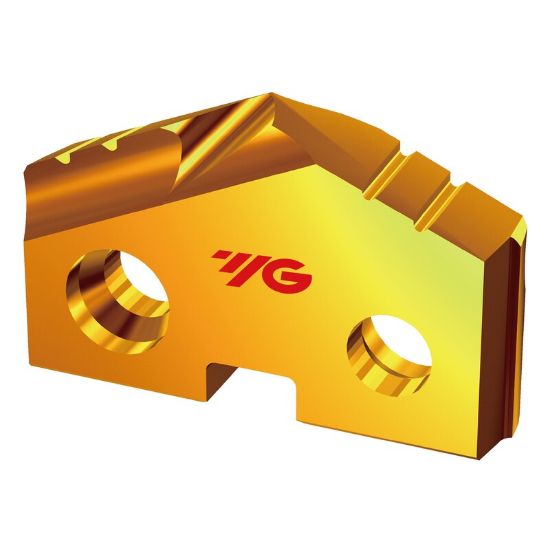

YG-1 SV120030 15/32 Super HSS(T15) SV-Point Throw Away Spade Drill Insert HARDSLICK Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1SV120030
Delivery date: 3-5 days
$31.28

Cutting Edge Definition

T15 is used for cutting tools that are exposed to extremely rigorous heat or abrasion in service. The M tool steels generally are considered to have molybdenum as the principal alloying element, although several contain an equal or a slightly greater amount of such elements as tungsten or cobalt.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Coating Hardslick
Application Single Insert Drilling, Spade Drilling, Drilling
Made In USA No
Dimensional Specifications
Cut Dia Min 0.4688 11.91MM - 15/32
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Super HSS T15
Cutter Dia 0.4688 11.91MM - 15/32
Flutes/Inserts 2
Included Angle 132°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS T15
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
