  • YG-1 ST722 3/4-16.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

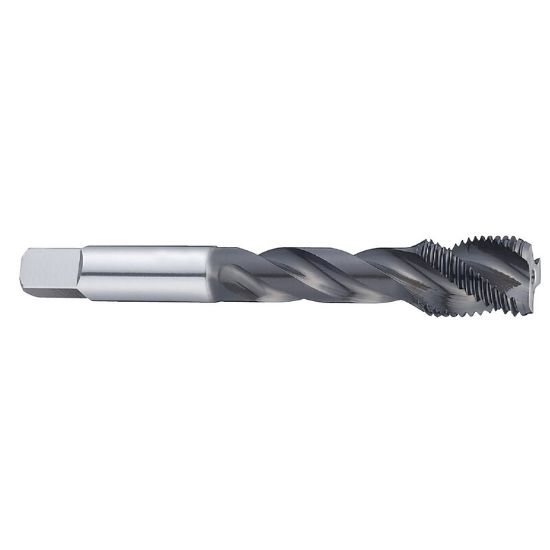

Picture of YG-1 ST722 3/4-16.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 ST722 3/4-16.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ST722
Delivery date: 3-5 days
$83.35

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 4.2500 107.95MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Chamfer 4.5P-5.0P
Thread Limit 2B
Tap Type Plug
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Tool Material Steel
Tap Style STI
Thread Pitch 16.00TPI
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.7677 19.50MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
