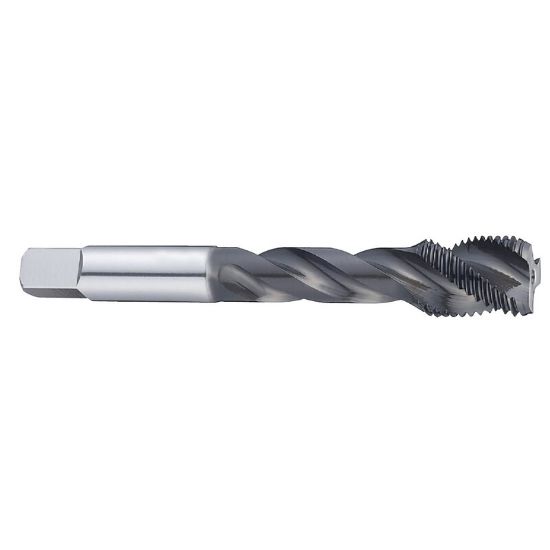

Picture of YG-1 ST462 5/16-24.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 ST462 5/16-24.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ST462
Delivery date: 3-5 days
$13.45

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Size 5/16"
Tool Material Steel
Overall Len 2.9370 74.60MM
Tap Style STI
Thread Limit 2B
Tap Type Plug
Shank/Pilot Dia 0.3810 9.68MM
Drill Range 0.3228 8.20MM
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.2860
Tap Chamfer 4.5P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
