  • YG-1 ST362 No.12-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

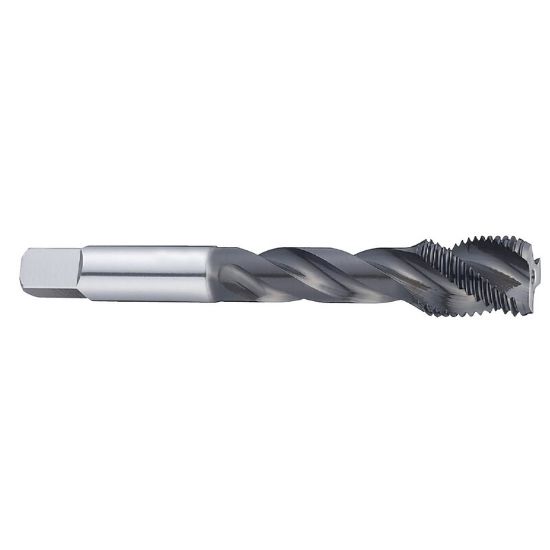

Picture of YG-1 ST362 No.12-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 ST362 No.12-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ST362
Delivery date: 3-5 days
$12.39

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Type Bottoming
Tap Style STI
Drill Range 0.2283 5.80MM
Tap Chamfer 1.5P-2.0P
Thread Limit 2B
Tap Square 0.2380
Thread Size No.12
Thread Pitch 24.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
