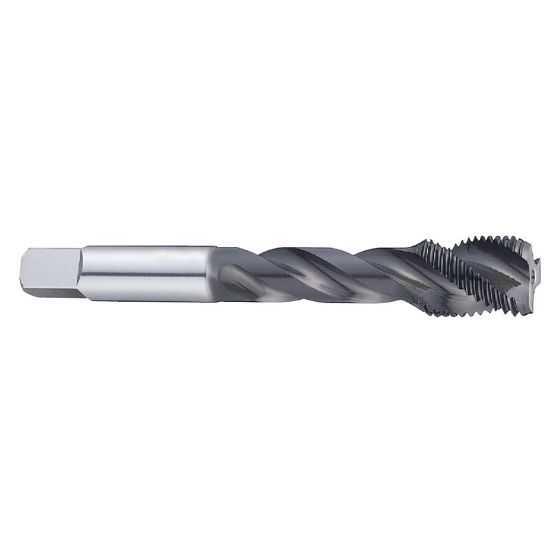

Picture of YG-1 ST302 No.8-36.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 ST302 No.8-36.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ST302
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Thread Limit 2B
Thread Type STI-I
Tap Type Plug
Length Type Standard
Thread Size No.8
Thread Pitch 36.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2200 5.59MM
Tool Material Steel
Tap Square 0.1650
Tap Chamfer 4.5P-5.0P
Tap Style STI
Drill Range 0.1732 4.40MM
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
