  • YG-1 ST282 No.8-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

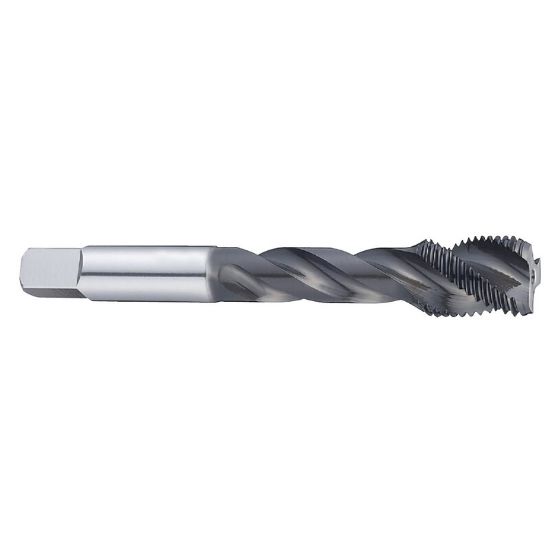

Picture of YG-1 ST282 No.8-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 ST282 No.8-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ST282
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Coating Hardslick
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size No.8
Thread Limit 2B
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Drill Range 0.1732 4.40MM
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Square 0.1650
Shank/Pilot Dia 0.2200 5.59MM
Machine Side Connection Type Tap Collet
Length Type Standard
Tap Type Bottoming
Tap Style STI
Thread Pitch 32.00TPI
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
