  • YG-1 ST242 No.6-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

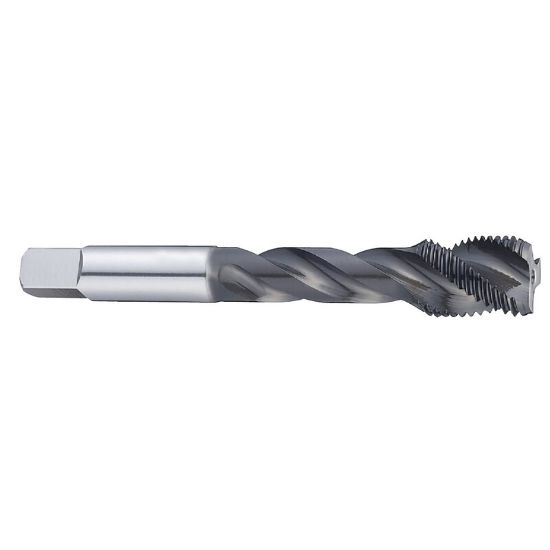

Picture of YG-1 ST242 No.6-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 ST242 No.6-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-ST242
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Shipping State Illinois
Coating Hardslick
Performance Rating General Performance
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Style STI
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Drill Range 0.1457 3.70MM
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.5P-2.0P
Thread Size No.6
Flutes/Inserts 3
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Square 0.1520
Machine Side Connection Type Tap Collet
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
