  • YG-1 SI722 3/4-16.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

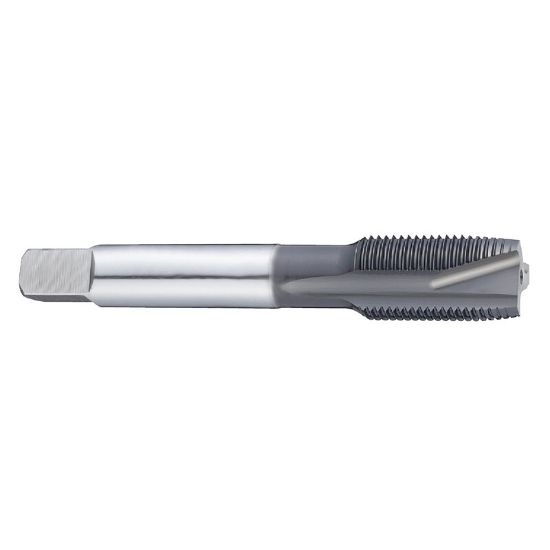

Picture of YG-1 SI722 3/4-16.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI722 3/4-16.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI722
Delivery date: 3-5 days
$83.35

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Made In USA No
Coating Hardslick
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 3
Thread Pitch 16.00TPI
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Length Type Standard
Tap Type Bottoming
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Overall Len 4.2500 107.95MM
Drill Range 0.7677 19.50MM
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tool Material Steel
Tap Style STI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
