  • YG-1 SI702 3/4-10.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

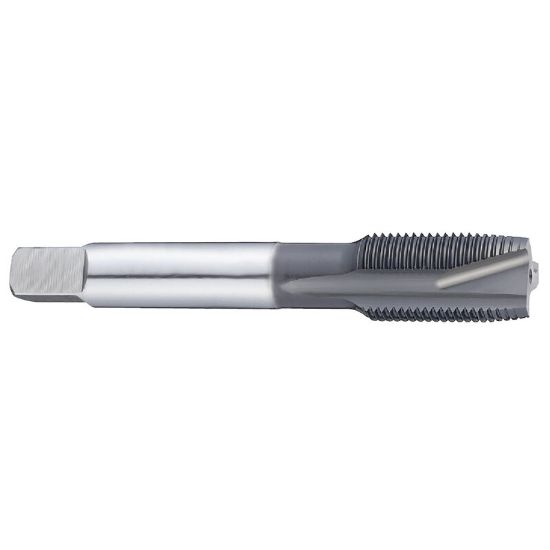

Picture of YG-1 SI702 3/4-10.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI702 3/4-10.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI702
Delivery date: 3-5 days
$83.35

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Machine Side Connection Type Tap Collet
Thread Size 3/4"
Flutes/Inserts 3
Overall Len 4.2500 107.95MM
Tool Material Steel
Tap Chamfer 4.5P-5.0P
Tap Style STI
Thread Pitch 10.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Length Type Standard
Drill Range 0.7795 19.80MM
Tap Square 0.4420
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
