  • YG-1 SI662 5/8-18.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

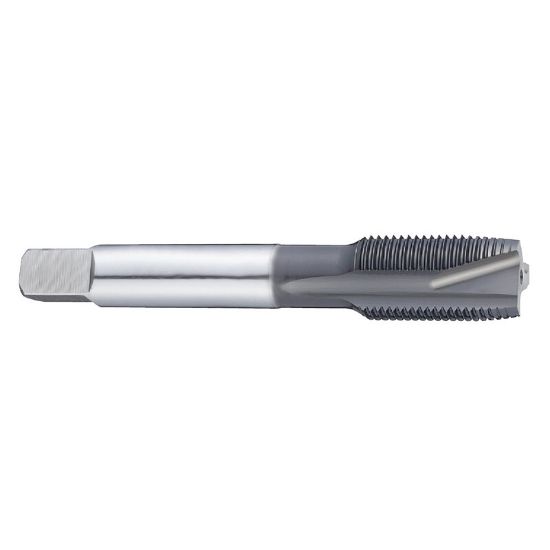

Picture of YG-1 SI662 5/8-18.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI662 5/8-18.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI662
Delivery date: 3-5 days
$59.56

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Package Size 1
Coating Hardslick
Dimensional Specifications
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 1.5P-2.0P
Thread Size 5/8"
Thread Limit 2B
Length Type Standard
Tap Type Bottoming
Tap Style STI
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.8120 96.82MM
Tool Material Steel
Tap Square 0.3600
Flutes/Inserts 3
Drill Range 0.6417 16.30MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
