  • YG-1 SI642 5/8-11.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

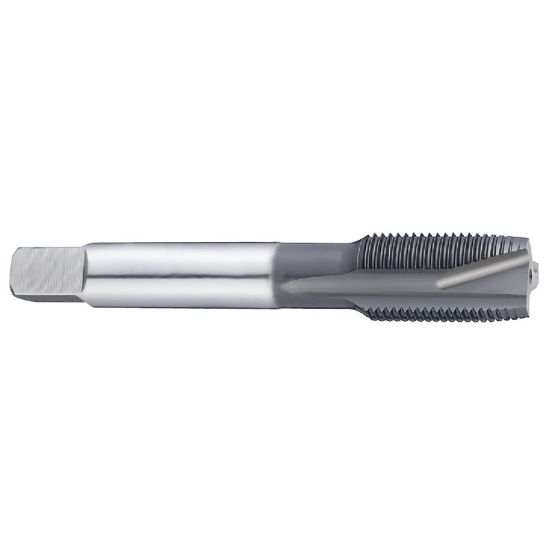

Picture of YG-1 SI642 5/8-11.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI642 5/8-11.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI642
Delivery date: 3-5 days
$59.56

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Through Hole Tapping, Tapping, Plug Tapping
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Style STI
Shank/Pilot Dia 0.4800 12.19MM
Dimension Standard ANSI/ANSI
Overall Len 3.8120 96.82MM
Flutes/Inserts 3
Length Type Standard
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Drill Range 0.6496 16.50MM
Thread Size 5/8"
Thread Limit 2B
Tap Type Plug
Tap Square 0.3600
Tap Chamfer 4.5P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
