  • YG-1 SI622 9/16-18.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

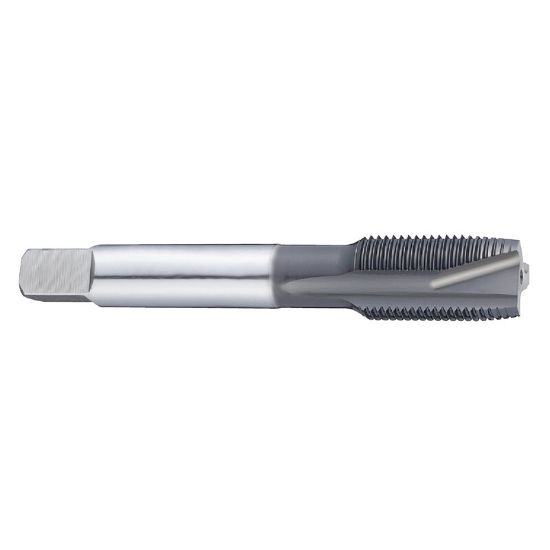

Picture of YG-1 SI622 9/16-18.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI622 9/16-18.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI622
Delivery date: 3-5 days
$38.40

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, STI Thread Insert Tapping, Blind Hole Tapping
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Drill Range 0.5787 14.70MM
Tap Square 0.3220
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Style STI
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Length Type Standard
Tap Type Bottoming
Thread Pitch 18.00TPI
Tap Chamfer 1.5P-2.0P
Thread Size 9/16"
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
