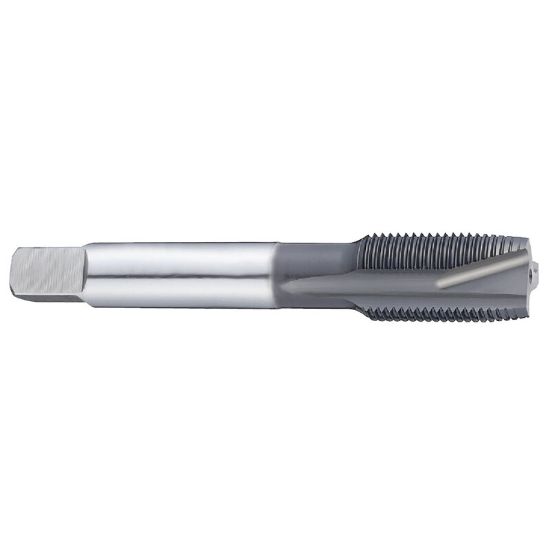

Picture of YG-1 SI602 9/16-12.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI602 9/16-12.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI602
Delivery date: 3-5 days
$38.40

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Square 0.3220
Dimension Standard ANSI/ANSI
Drill Range 0.5866 14.90MM
Length Type Standard
Thread Size 9/16"
Flutes/Inserts 3
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Chamfer 4.5P-5.0P
Tap Style STI
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
