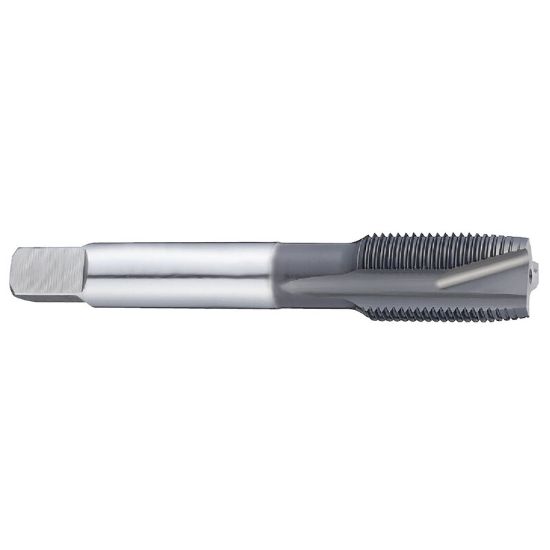

Picture of YG-1 SI562 1/2-13.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI562 1/2-13.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI562
Delivery date: 3-5 days
$25.87

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, STI Thread Insert Tapping, Through Hole Tapping, Tapping
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Thread Size 1/2"
Drill Range 0.5236 13.30MM
Tap Square 0.3600
Tap Chamfer 4.5P-5.0P
Length Type Standard
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Style STI
Thread Pitch 13.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Thread Limit 2B
Tap Type Plug
Machine Side Connection Type Tap Collet
Overall Len 3.3810 85.88MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
