  • YG-1 SI542 7/16-20.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

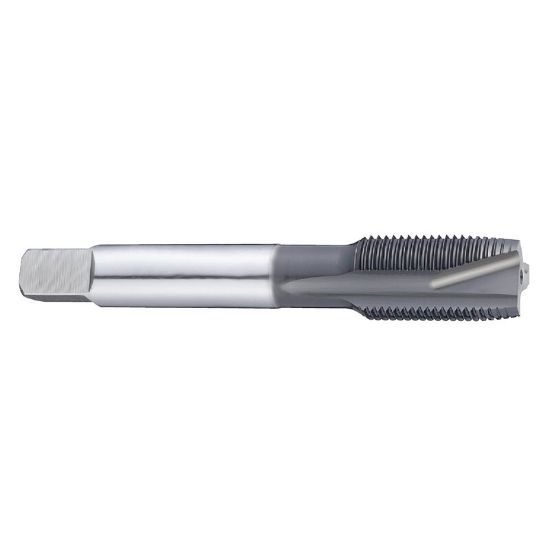

Picture of YG-1 SI542 7/16-20.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI542 7/16-20.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI542
Delivery date: 3-5 days
$20.15

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, STI Thread Insert Tapping, Bottom Tapping, Tapping
Package Size 1
Shipping State Illinois
Made In USA No
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Flutes/Inserts 3
Thread Size 7/16"
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Style STI
Thread Pitch 20.00TPI
Length Type Standard
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Drill Range 0.4528 11.50MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
