  • YG-1 SI502 3/8-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

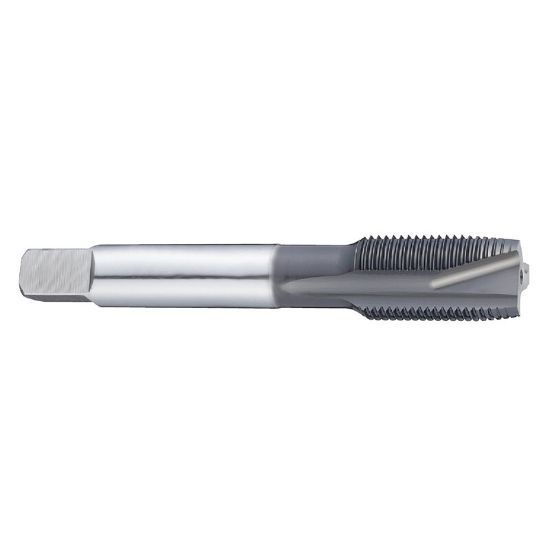

Picture of YG-1 SI502 3/8-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI502 3/8-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI502
Delivery date: 3-5 days
$15.45

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating Hardslick
Application Bottom Tapping, Tapping, STI Thread Insert Tapping, Blind Hole Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Type Bottoming
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Chamfer 1.5P-2.0P
Thread Pitch 24.00TPI
Flutes/Inserts 3
Tap Square 0.2420
Machine Side Connection Type Tap Collet
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Style STI
Thread Limit 2B
Thread Type STI-I
Overall Len 3.1560 80.16MM
Thread Size 3/8"
Drill Range 0.3858 9.80MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
