  • YG-1 SI462 5/16-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

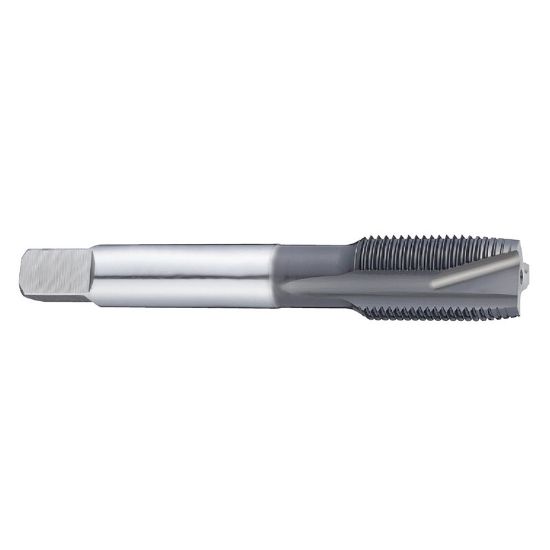

Picture of YG-1 SI462 5/16-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI462 5/16-24.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI462
Delivery date: 3-5 days
$13.45

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Package Size 1
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3810 9.68MM
Drill Range 0.3228 8.20MM
Length Type Standard
Tap Type Bottoming
Flutes/Inserts 3
Thread Size 5/16"
Tool Material Steel
Overall Len 2.9370 74.60MM
Tap Style STI
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
