  • YG-1 SI402 1/4-20.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

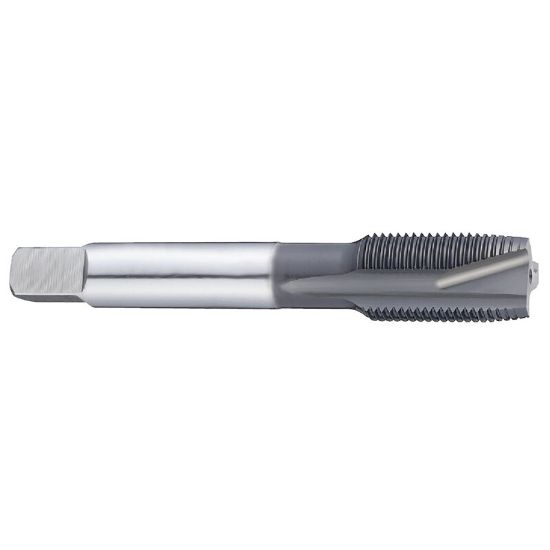

Picture of YG-1 SI402 1/4-20.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI402 1/4-20.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI402
Delivery date: 3-5 days
$12.39

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Chamfer 4.5P-5.0P
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Style STI
Drill Range 0.2638 6.70MM
Thread Pitch 20.00TPI
Thread Size 1/4"
Thread Limit 2B
Tap Square 0.2380
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
