  • YG-1 SI342 No.10-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

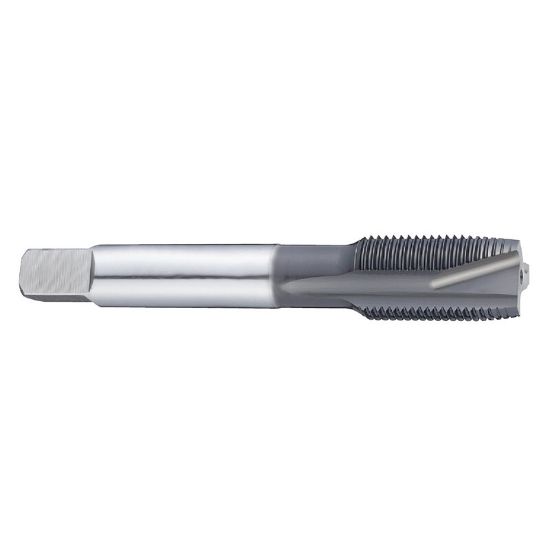

Picture of YG-1 SI342 No.10-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI342 No.10-32.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI342
Delivery date: 3-5 days
$11.73

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Tapping, Blind Hole Tapping, STI Thread Insert Tapping
Coating Hardslick
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Drill Range 0.2008 5.10MM
Length Type Standard
Tap Type Bottoming
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.2550 6.48MM
Thread Size No.10
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Thread Limit 2B
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Tap Style STI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
