  • YG-1 SI322 No.10-24.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

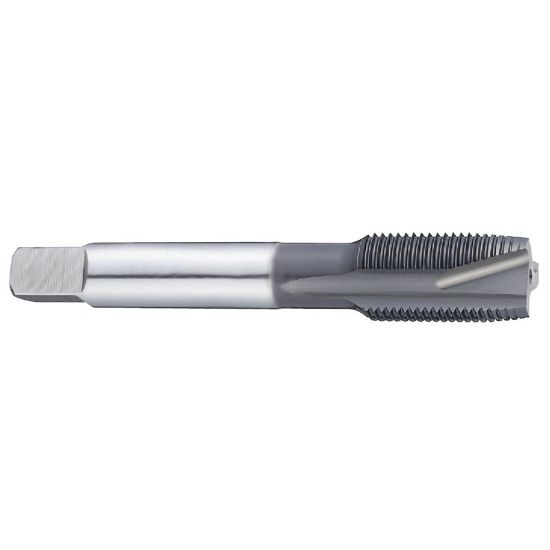

Picture of YG-1 SI322 No.10-24.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI322 No.10-24.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI322
Delivery date: 3-5 days
$11.73

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.2008 5.10MM
Length Type Standard
Thread Limit 2B
Thread Type STI-I
Tap Type Plug
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.10
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tool Material Steel
Tap Chamfer 4.5P-5.0P
Tap Style STI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
