  • YG-1 SI282 No.8-32.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

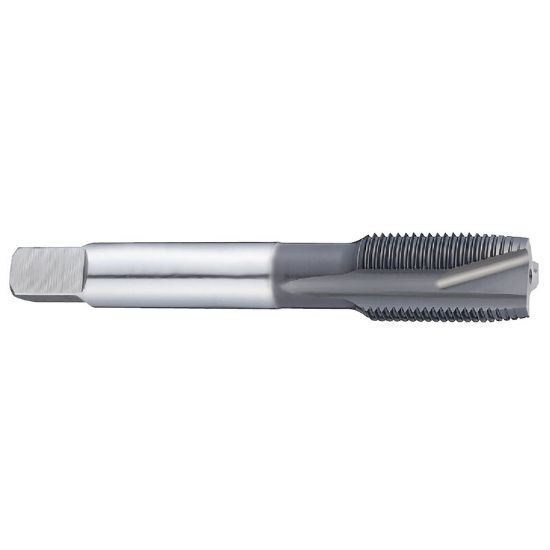

Picture of YG-1 SI282 No.8-32.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI282 No.8-32.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI282
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Shipping State Illinois
Made In USA No
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Drill Range 0.1732 4.40MM
Tool Material Steel
Tap Style STI
Thread Size No.8
Thread Limit 2B
Tap Type Plug
Shank/Pilot Dia 0.2200 5.59MM
Length Type Standard
Tap Square 0.1650
Tap Chamfer 4.5P-5.0P
Thread Pitch 32.00TPI
Thread Type STI-I
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
