  • YG-1 SI242 No.6-32.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

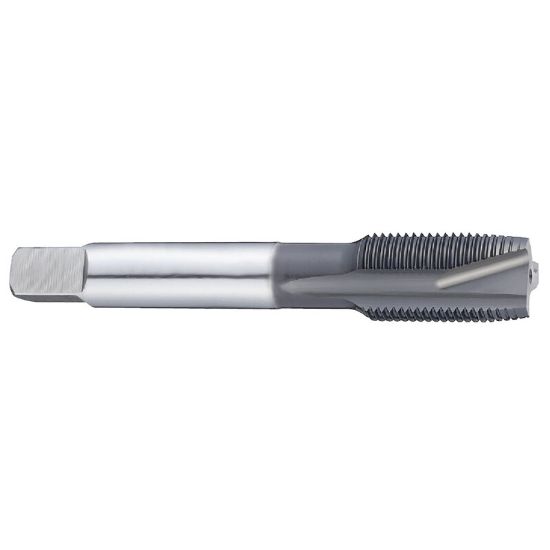

Picture of YG-1 SI242 No.6-32.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

YG-1 SI242 No.6-32.00TPI STI Plug 4.5P-5.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI242
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, STI Thread Insert Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.6
Tool Material Steel
Tap Chamfer 4.5P-5.0P
Tap Style STI
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Limit 2B
Thread Type STI-I
Tap Square 0.1520
Tap Type Plug
Shank/Pilot Dia 0.1940 4.93MM
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Drill Range 0.1457 3.70MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
