  • YG-1 SI222 No.5-40.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

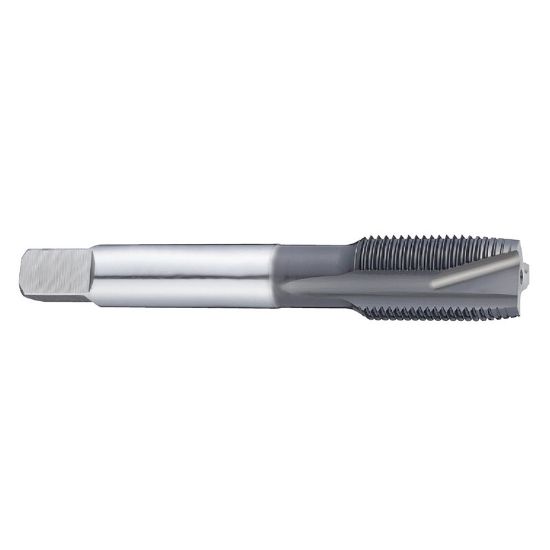

Picture of YG-1 SI222 No.5-40.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI222 No.5-40.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI222
Delivery date: 3-5 days
$11.24

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Blind Hole Tapping, STI Thread Insert Tapping
Performance Rating General Performance
Package Size 1
Coating Hardslick
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size No.5
Tap Square 0.1310
Thread Pitch 40.00TPI
Thread Limit 2B
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Shank/Pilot Dia 0.1680 4.27MM
Drill Range 0.1339 3.40MM
Length Type Standard
Tap Type Bottoming
Tap Style STI
Tool Material Steel
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
